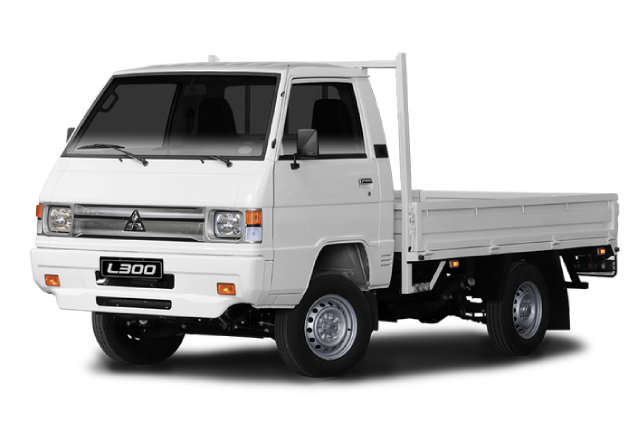

L300 Cab & Chassis
2.2L Diesel
2WD Manual
5-speed manual
4 In-line 16 Valve DOHC with Turbocharged – Intercooler System
Key Features
- 2.2L 16 Valve DOHC (4N14) with Turbocharged – Intercooler System (Euro 4)
- Front Suspension: Independent Wishbone and Coil Spring
- Rear Suspension: Semi-Elliptic Leaf Spring
| General Specifications |
| Overall Length | 4,440 mm |
| Overall Width | 1,695 mm |
| Overall Height | 1,915 mm |
| Wheelbase | 2,350 mm |
| Ground Clearance | 195 mm |
| Maximum Gross Vehicle Weight | 2,345 kg |
| Curb Weight | 1,085 kg |
| Cab and Chassis Payload | 1,085 kg |
| Engine |
| Type | (4N14) 2.2L $ In-line 16 -Valve DOHC with Turbocharged Intercooler System |
| Fuel System | Electronic Common Rail , Direct Injection |
| Fuel Tank Capacity | 55 Liters |
| Max. Power | 99.25/3500 Ps/rpm |
| Max. Torque | 200/1000-3500 Nm/rpm |
| Suspension |
| Front | Independent Wishbone and Coil Spring with Stabilizer |
| Reat | Semi-Elliptic Leaf spring |
| Brakes |
| Front | 10″ Ventilated Disc |
| Rear | 10″ Leading and Trailing Drums |
| Steering |
| Gear Type | Bail and Nut Gear Type with Power Steeing |
| Steering Wheel | 2-spoke Polypropylene |
| Wheels And Tires |
| Tires | 185R14C-8PR |
| Wheels | 14″x 5.0J Steel Rims |
